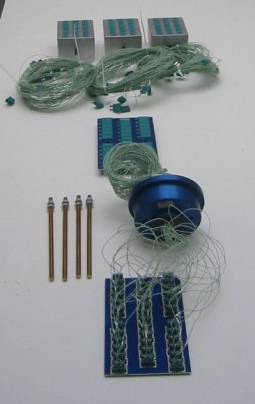

Flange ISO K DN 160 - 30 x Tc K wires, connectors & pannels

CF16 flange with 3 TCK threads

M30 flange with 16 AWG16 wires

KF40 flange with 4 TCN threads

CF40 flange with 3 25 point/75 wire awg24 connectors, empty side metal sheaths and gold connectors

2 CF40 flanges wired outputs

KF50 flange equipped with 80 F

KF50 flange equipped with 42 TCT

KF25 flange with 18 AWG20 wires

DN63 ISO K Flange 6 RJ45 cables.
RJ45 Male connector on each ends.

DN40 CF Flange with aluminium insert.
Blue naodisation.
26 AWG26 wires.

Feedthrough for pressure application 100 bars.
Wired feedthrough.
Specific mechanical design for pressure.

Wired DN40 KF,  flared design, red anodisation.
With 8 Thermocouple type K, multi-strand & 2 Thermocouple type C, single strand.
Mini connectors on each extremity.


Wired Flange DN40 CF with 30 Thermocouples type K.
Flared insert in aluminium with green anodisation.
Mini Male Tc K connectors on AIR side.

Wired DN40 CF flange with insert in alumiium + Alodine 1200 protection
 with 8 Thermocouple type K.


Customer design GALILEO wired flange with 50 type K thermocouples. Individual identification with heat-shrink sleeves.  Overall nylon protective braid on atmo side
