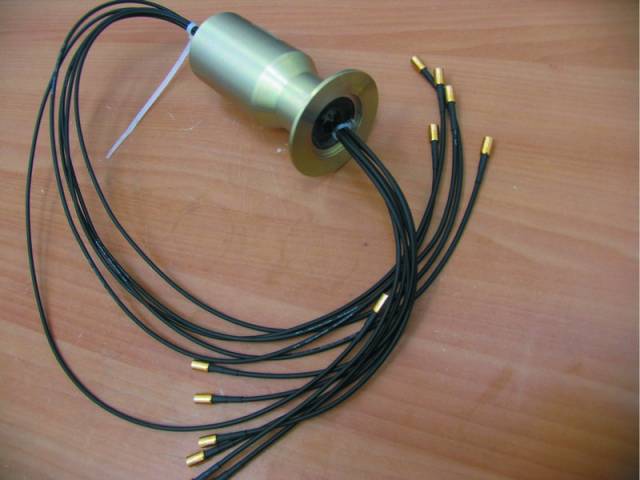

Flange KF40 - 6 x Coaxial wire & SMB connectors

DN100 ISO K flange with :
* 1 ERVAC A DSub 7W2 Male/Female reversible - Power - 2 * size 8 contact - 40 Amps
* 1 ERVAC, PEEK material, 4 x SMA Coax connector 18 GHz Female/Female

DN100 ISO K - 12 * SK coaxial connector - 1.92 - 40 GHz - Femelle/Femelle

Flange DN63 ISO K with :
- ERVAC B 31 pins MicroD Male/Female
- 2 SMA 18 GHz Female/Female

DN200 ISO K with :
- 3 x ERVAC D DSub 25 pins Male/Female reversible
- 3 x ERVAC D 2*DSub 9 pins Male/Female reversible
- 2 x ERVAC D 2*BNC Female/Female

Flange DN100 ISO-K with 1 ERVAC D 4 SMA coaxial 18 GHz.
Full plastic : 100% PEEK.

Wired Flange DN25 KF with 4 x Coax

Flange ISO K DN250 with several Ervac modules : Ervac D 2*SHV body in PEEK, Ervac D DSub 37 pins male/female, Ervac B 25 pins male/female, Ervac D 4*SMA

Flange DN320 ISO K with different modules : ERVAC, DSub, Type N, Coaxial, SMA.

Flange ISO K DN200 with 8 x ERVAC D.

Flange ISO K DN100 with 12 x coaxial Connector type SK. 40 GHz. Female/Female.

Flange ISO K DN100 with 9 x BNC Female/Female + 1 x ERVAC E DSub 9 pins Male/Female reversible.

Special Flange with a diameter of 190 mm, 15 x Coaxial SMA connector 18 GHz Female/Female.

CF DN40 Flange with insert in aluminium for 5 x Coaxial Wires, RG179 kind.

Flange ISO K DN100 with 9 X Connector Coax type BNC Female/Female.

Flange ISO K DN160 with : 1 x ERVAC A 26HD + 1 x ERVAC D 2xBNC + 1 x ERVAC B 25ND + 1 x ERVAC B 5W5 High Voltage (3 kV)
