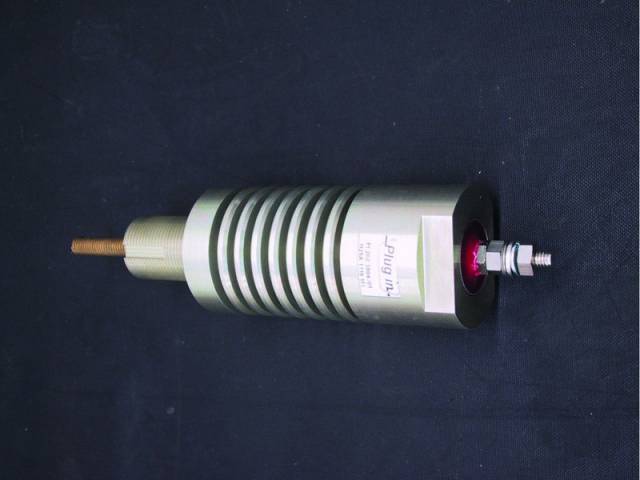

SPECIAL Feedthrough - Filter + Cooling by air

  Flange H300 with 6 F 3W3 Power Modules

K250 flange with 9 Ervac D 8W8 Power and 2 D plugs

DN500 ISO K  Flange
40 Modules F : connecteurs SubD divers

DN100 ISO K flange with :
* 1 ERVAC A DSub 7W2 Male/Female reversible - Power - 2 * size 8 contact - 40 Amps
* 1 ERVAC, PEEK material, 4 x SMA Coax connector 18 GHz Female/Female

DN100 ISO F Flange mounted with :
- 1 ERVAC D 8W8 Male/Female reversible Power 40 Amps - 8 contacts size 8.
- 1 ERVAC E 1 USB 2.0 connectors Female/Female

DN40 KF with 4 thread rods M6. Power application.

Bride DN200 ISO-K :
- Module F DSub 37 pins Normal Density
- Module F DSub 8W8 Power (40 A)
- 2 x Weld Stub KF40

M30 Nut & Bolt design in Plastic (PE) with Brass M10 thread roll.
Power application.

ISO K DN250 Flange with 4 x ISO KF DN50 flange with 4 Power Plug 15kV/185A.

Special Flange for 4 Optic Fiber & 1 x DSub 5W5 Power

Power flange M25. Brass M8 thread roll.

Special Flange with 2 x D38999 connector and 3 x M8 threaded rod

Flange CF40 with 3 x DSub 3W3 Power Male connector on Air side, shielded wires on Vacuum side, with DSub 3W3 Power Female Connector, Gold plated shells.

Special Power Flange M25. Orange anodisation. Threaded rod M10.

Flange K100, Height 25 mm. With 2 x DSub 5W5 Power + 2 x DSub 9 pins Normal Density.
